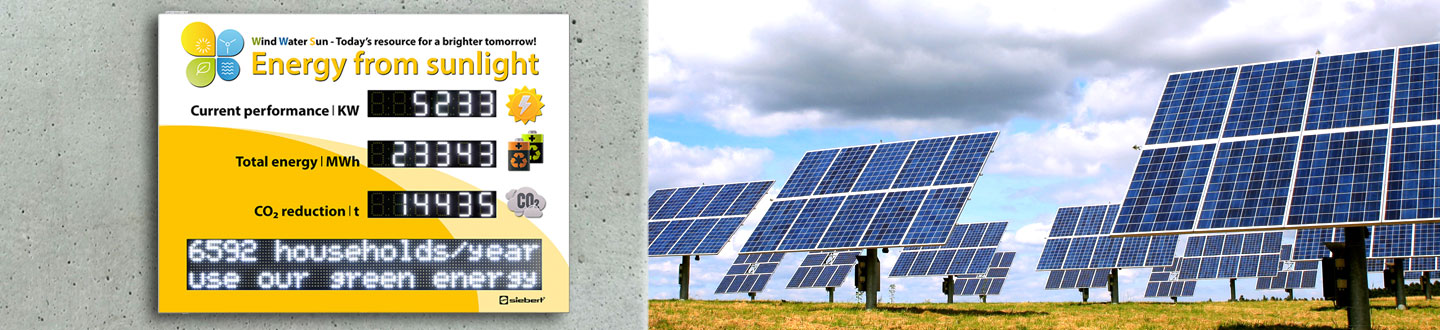

Digital displays with integrated text display

Besides the visualization of yield data the XC490 series offers to illustrate individual information and texts. Whether marquee, blinking, two-lined with a character height of 50 mm or single-lined with a character height of 100 resp. 120 mm any desired text can be illustrated in different formatting.

Integrated text display

The additional text display allows the presentation of individual information and draws the attention to the display.

Robust housings

The digital displays of the XC490 series are especially suitable for sites in public areas or in harsh environments. The robust steel sheet housings offer a wide protection against external influences on the display.

Design

ST1

ST1

ST2

ST2

ST3

ST3

Graphic design

Different graphic designs

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

Examples


Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display
  • Character height LED digits
  • LED text display
  • Character heights LED text display
  • LED color
  • Measures W x H x D
  • Material

  • Power supply
  • Protection type
  • Weight

  • XC490-SCW-N-04
  • 3 x 6 digits
  • 55 mm
  • 2 x 20 chars with lettering Acala 7
  • 50/100/120 mm switchable
  • white
  • 1100 x 800 x 70 mm
  • steel sheet varnished,
    front film coated
  • 100...240V AC, 50...60Hz
  • IP54 (IP65)
  • approx. 36 kg

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC490-xxx-x-04
  • XC490-xxx-x-05
  • XC490-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC490-xxR-x-xx
  • XC490-xxW-x-xx

Options

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC490-xxx-A-xx
  • XC490-xxx-x-xx-18xx
  • XC490-xxx-x-xx-S99xxx
