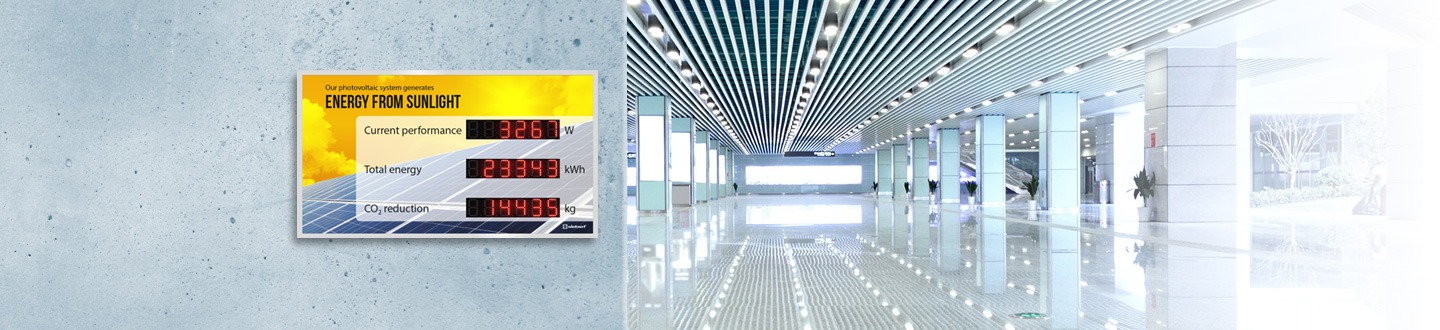

Representative digital displays with a clear design language

With their exclusive design Siebert digital displays of the XC450 series awake the interest of the public to communicate the commitment of the investor. Together with the slim aluminum housings the graphically sophisticated designs form an object which adapts itself harmoniously in the respective ambience.

An innovative feature is the LED display in modern SMD technology. With white luminous digits, an elegant typeface and extremely high brightness, it defines a new standard. The super bright digits are very well readable in the sunlight. An automatic brightness control optimally adjusts the brightness to the ambient light.

The XC450 series uses 55 mm high LED digits and allows reading distances up to 20 m.

Automatic brightness control

An automatic brightness control adjusts the brightness to the ambient light.

Suitable for outdoor use

Devices which are used outdoors have screwed housing frames and offer protection against vandalism.

Standard designs

The displays of the XC450 series are offered in 2 different designs – either designed as Linea with its classical horizontal format and Quadro with its square design which offers a wide scope for individual design.

Design Linea

LT1

LT1

LT2

LT2

LT3

LT3

Design Quadro

QT1

QT1

QT2

QT2

QT3

QT3

Graphic design

Different graphic designs

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

Examples

Series XC450 Linea


Series XC450 Quadro


Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code - Linea
  • Type code - Quadro
  • LED display character height
  • LED color
  • LED display
  • Measures W x H x D - Linea
  • Measures W x H x D - Quadro
  • Material

  • Power supply
  • Power consumption
  • Protection type
  • Weight - Linea
  • Weight - Quadro

  • XC450-LCR-N-04
  • XC450-QFR-N-04
  • 55 mm
  • red
  • 3 x 6 digits
  • 1000 x 560 x 62 mm
  • 1000 x 1000 x 62 mm
  • aluminum,
    front acrylic glass
  • 100...240V AC, 50...60Hz
  • 25W max.
  • IP40 (IP54)
  • approx. 11 kg
  • approx. 16 kg

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C, Bluetooth
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC450-xxx-x-04
  • XC450-xxx-x-05
  • XC450-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC450-xxR-x-xx
  • XC450-xxW-x-xx

Options

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC450-xxx-A-xx
  • XC450-xxx-x-xx-18xx
  • XC450-xxx-x-xx-S99xxx
