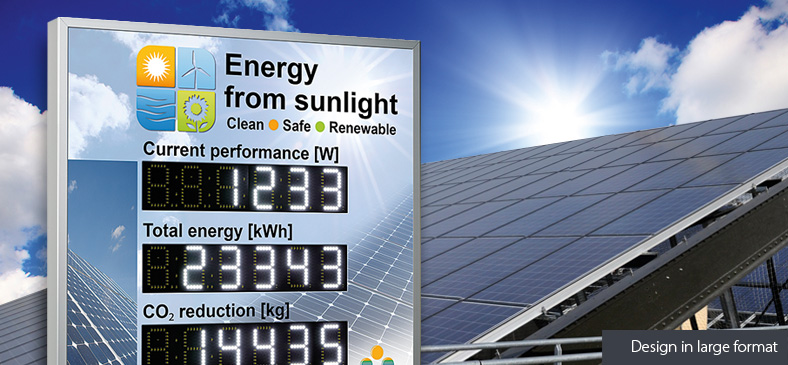

Design in large format

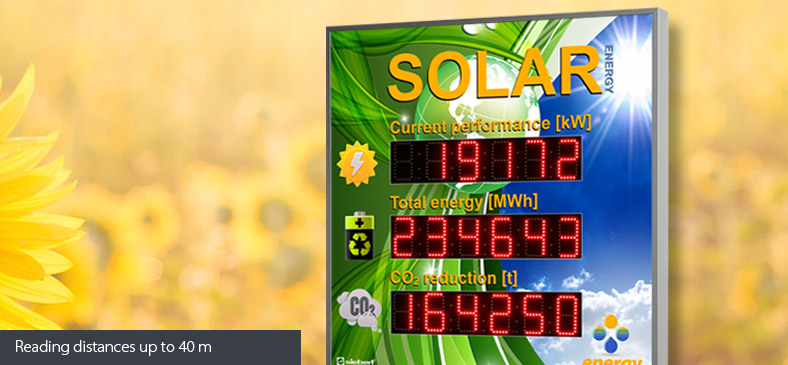

The XC480 series combines a representative large size and individual design. The 100 mm high digits are especially suitable for long reading distances up to 40 meters.

Super bright LED display

The super bright digits are very well readable in the sunlight. Thus the devices also arouse the interest of the passers-by at longer reading distances.

Automatic brightness control

An automatic brightness control adjusts the brightness to the ambient light.

Suitable for outdoor use

Devices which are used outdoors have screwed housing frames and offer protection against vandalism.

Design

ST1

ST1

ST2

ST2

ST3

ST3

Graphic design

Different graphic designs

It’s also possible to integrate a logo of the investor, the planner, the sponsors or a photo of the building into the graphics.
Individually designed graphics are also possible. For this, our own design studio is your competent partner.

Examples



Labeling variants

You can choose between six labeling variants.

Bez.

EN1

EN2

EN3

EN4

EN5

EN6

Line 1

Current performance in W

Current performance in kW

Current performance in W

Current performance in kW

Current performance in kW

Current performance in kW

Line 2

Total energy in kWh

Total energy in MWh

Daily energy in kWh

Daily energy in kWh

Total energy in kWh

Daily energy in kWh

Line 3

CO₂ reduction in kg

CO₂ reduction in t

Total energy in kWh

Total energy in MWh

CO₂ reduction in kg

Total energy in kWh



  • Type code
  • LED display character height
  • LED color
  • LED display
  • Measures W x H x D

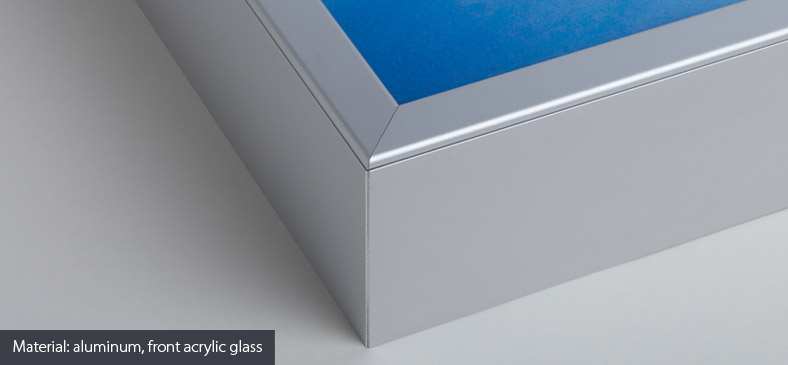

  • Material

  • Power supply
  • Protection type
  • Weight

  • XC480-SAR-N-04
  • 100 mm
  • red
  • 3 x 6 digits
  • 1000 x 1000 x 62 mm
  • aluminum,
    front acrylic glass
  • 100...240V AC, 50...60Hz
  • IP40 (IP54)
  • approx. 18 kg

Values in ( ) brackets are valid for devices with optional equipment package for outdoor use.

Data interface

  • S0 pulse, Serial RS485, USB-C, Bluetooth
  • Ethernet
  • WLAN Bridge   Logo Wifi



  • XC480-xxx-x-04
  • XC480-xxx-x-05
  • XC480-xxx-x-xx-18x1

LED color

  • red
  • white



  • XC480-xxR-x-xx
  • XC480-xxW-x-xx

Options

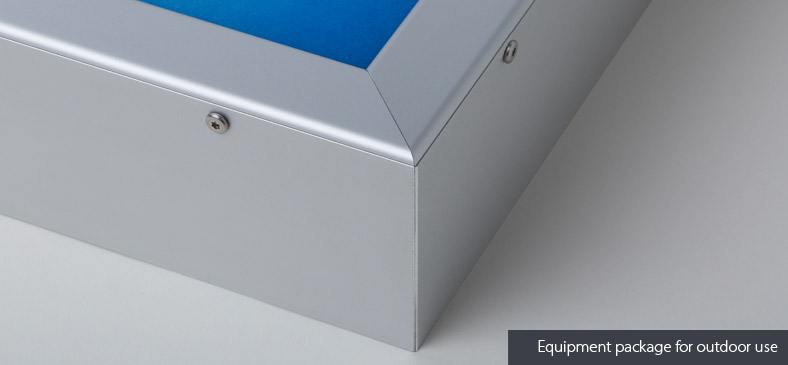

  • Equipment package for outdoor use
  • WLAN Bridge with multiple receivers
  • Individual foil design



  • XC480-xxx-A-xx
  • XC480-xxx-x-xx-18xx
  • XC480-xxx-x-xx-S99xxx
